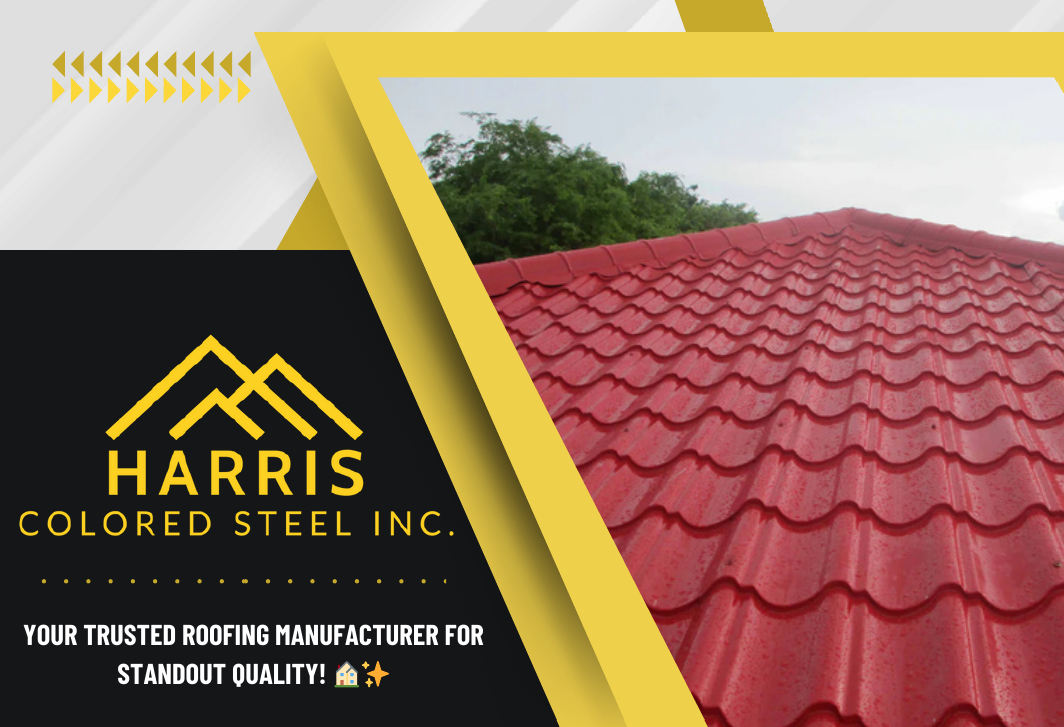

Rib-Tile Roofing

Description

Substrates
Hot-dip Metallic Coated Steel
-Hot-dip Zinc-Coated Steel
-Hot-dip 55% Aluminum-Zinc Alloy Coated Steel

Nominal Thickness
0.40mm to 0.60mm

Feed Width
1220 mm

Effective
1025mm (Calamba), 1005mm (Other areas)
Coverage

Paint Coating Systemn
Oven baked oil-free polyester topcoat over a corrosion-resistant primer with oil-free polyester backing coat PVDF, SMP, available upon request

Paint Coating Thickness
Topcoat 12 – 15 microns
Backcoat 4 – 8 microns

Module Distance
Standard 300 mm
Variable 100 mm minimum

Purlin Spacing
Equal to Module Distance

Depth of Step in Tile
Standard 15 mm

Length
Transportable length up to 20 meters
Onsite rollforming for longer panels
